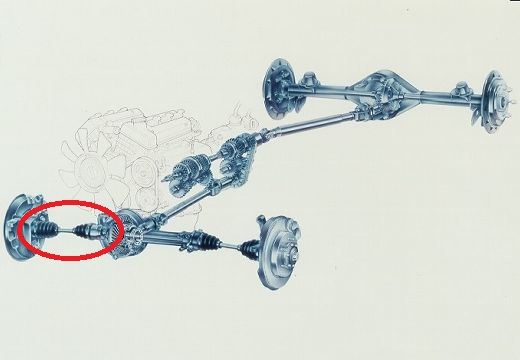

Right Front Drive Shaft
for Suzuki Grand Vitara I and XL7 Pre-Facelift
(not compatible with XL7 2003–2006 facelift)
Fits Grand Vitara I (1998–2005) and XL7 pre-facelift (2001–2003). With right inner CV joint extension, it can also be installed in Vitara I (1995–1998) wide frame versions: 2.0 16v, 2.0 V6, 2.0 TD RF.
Copy of the “thick” GVI drive shaft – all components interchangeable 1:1 with original Suzuki NTN joints 44102-67D00, 44102-77E02.
Stronger than the original “thin” drive shaft, but less durable than the original “thick” and “XL7 facelift” versions.

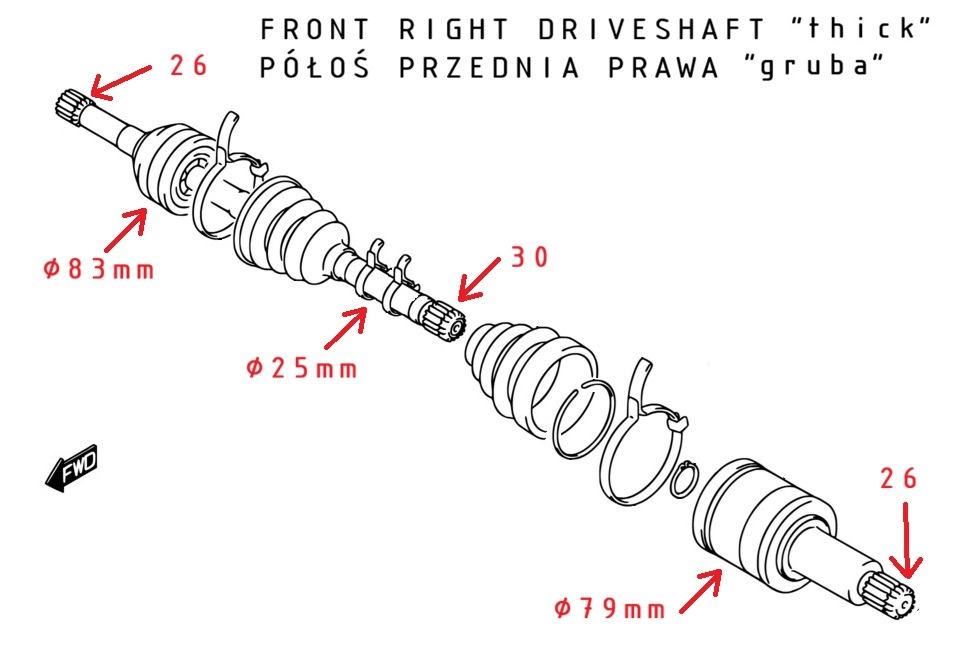

All dimensions identical to the original “thick” drive shaft:
Copy of the “thick” GVI drive shaft – all components interchangeable 1:1 with original Suzuki NTN joints 44102-67D00, 44102-77E02.
Stronger than the original “thin” drive shaft, but less durable than the original “thick” and “XL7 facelift” versions.
All dimensions identical to the original “thick” drive shaft:
- outer CV joint ⌀ 83 mm (“thin” version ⌀ 76 mm), 26 splines (wheel side)
- inner CV joint ⌀ 79 mm (“thin” version ⌀ 76 mm), 26 splines (differential side)
- center shaft diameter ⌀ 25 mm, 30 splines (“thin” version ⌀ 24 mm, 29 splines)
- total compressed length: L = 607 mm
| Item name | Use in | Price |
|---|---|---|
| Right Front Drive Shaft 1 piece Item code: N-SGV-PPP | Grand Vitara I: 1.6 16v (1998-2005) 2.0 16v (1998-2005) 2.5 V6(1998-2005) 2.0 TD RF (1998-2005) 2.0 HDi (1998-2005) Grand Vitara XL7 pre-facelift version: 2.7 V6 (2001-2003) Vitara I (with R-SVGV-PPPW*): 2.0 16v* (1996-1998) 2.0 V6* (1995-1998) 2.0 TD RF* (1996-1998) | $166 €142 570 PLNAdd to Cart |
Prices in USD ($) and EUR (€) are calculated using an internal exchange rate. All payments are processed in PLN.
*Installation in Suzuki Vitara I requires right inner CV joint extension.
GUIDE:
Drive shaft type can be easily checked without removal – measure center shaft diameter in the middle (between CV joint boots):
GUIDE:
Drive shaft type can be easily checked without removal – measure center shaft diameter in the middle (between CV joint boots):
Center shaft diameter 24 mm = “thin” drive shaft (L = 607 mm; outer CV joint ⌀ 76 mm, inner CV joint ⌀ 76 mm), typically found in:
Center shaft diameter 25 mm = “thick” drive shaft (L = 607 mm; outer CV joint ⌀ 83 mm, inner CV joint ⌀ 79 mm), typically found in:
“Thin” and “thick” drive shafts have the same total length L = 607 mm, 26 splines (wheel side) and 3 bolts (differential side), so complete drive shafts are interchangeable.
CV joints are NOT interchangeable, as each type uses a different spline count on the center shaft (29, 30, 32 splines).
Center shaft diameter 28 mm = “XL7 facelift” drive shaft – NOT interchangeable with “thin” or “thick” versions due to shorter length (L = 588 mm; outer CV joint ⌀ 81 mm, inner CV joint ⌀ 79 mm), found in:
- Grand Vitara I 1.6 16v / 2.0 16v (1998–2005)
- Grand Vitara I 2.5 V6 (1998–2005) – automatic transmission
- Grand Vitara I 2.0 TD RF / 2.0 HDi (1998–2005) – automatic transmission
- Grand Vitara XL7 2.7 V6 (pre-facelift, 2001–2003) – automatic transmission
- Vitara I 2.0 16v (1996–1998)
- Vitara I 2.0 V6 (1995–1998)
Center shaft diameter 25 mm = “thick” drive shaft (L = 607 mm; outer CV joint ⌀ 83 mm, inner CV joint ⌀ 79 mm), typically found in:
- Grand Vitara I 2.5 V6 (1998–2005) – manual transmission
- Grand Vitara I 2.0 TD RF / 2.0 HDi (1998–2005) – manual transmission
- Grand Vitara XL7 2.7 V6 (pre-facelift, 2001–2003) – manual transmission
- Vitara I 2.0 TD RF (1996–1998)
“Thin” and “thick” drive shafts have the same total length L = 607 mm, 26 splines (wheel side) and 3 bolts (differential side), so complete drive shafts are interchangeable.
CV joints are NOT interchangeable, as each type uses a different spline count on the center shaft (29, 30, 32 splines).
Center shaft diameter 28 mm = “XL7 facelift” drive shaft – NOT interchangeable with “thin” or “thick” versions due to shorter length (L = 588 mm; outer CV joint ⌀ 81 mm, inner CV joint ⌀ 79 mm), found in:
- Grand Vitara XL7 2.7 V6 facelift (2003–2005)
- Grand Vitara XL7 2.0 HDi (2003–2005)
