Radzikone winch mounting plate
for Suzuki Grand Vitara I
Complete with radiator plate, which is and an additional lower rainfored mount.
Installed in original holes in the frame, no welding required.
Possible to install in original plastic bumper.
Fits most winches, for example:
Dragon Winch DWM 12000, DWM 13000, DWH 9000, DWH 12000, DWH 15000
Escape EVO IP68, EWX-Q, EWX-QF, EWB, Dual Speed
KingOne TDS-9.5H, TDS-12.0H

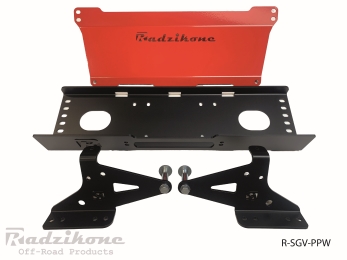

Winch mounting plate R-SGV-PPW use in:
- GV I without Body Lift
- GV I with 1" Body Lift

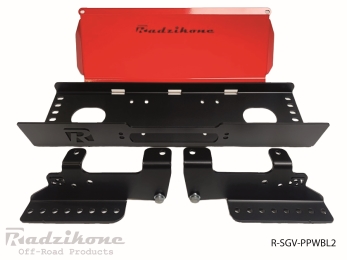

Winch mounting plate R-SGV-PPWBL2 use in:
- GV I with 2" or 3" Body Lift
- GV I without Body Lift or with 1" Body Lift (trimming needed = better approach angle)
Safe and solid construction made with rainforced steel.
Designed, tested and made in Wroclaw / Poland.
Parts preceisly made of laser cut elements.
Certified, high quality steel.
Galvanized metal parts.
Powder coated (ISO 9001: 2008 certified).
No road approval.
10 years warranty.
- winch mounting plate
- plate side mounts, 2pcs.
- lower rainforcement (radiator plate)
- towing eyes, 2pcs.
- mounting bolts
- installation instruction
Item name | Use in | Price |
---|---|---|
Winch mounting plate Item code: R-SGV-PPW | Suzuki Grand Vitara I: all models Suzuki Grand Vitara XL7: 2.7 V6 2001-2003 pre-facelift version | 1 040 PLNAdd to Cart |
Winch mounting plate BL2 version Item code: R-SGV-PPWBL2 | Suzuki Grand Vitara I: all models Suzuki Grand Vitara XL7: 2.7 V6 2001-2003 pre-facelift version | 1 070 PLNAdd to Cart |
The kit is a perfect set to create a steel bumper yourself.
All you need to do is sides and you have durabily installed bumper,
with towing eyes and possibilty to use Hi-Lift.
Photo instruction
