Radzikone winch mounting plate
for Suzuki Vitara I
Diffrent assembling configurations:
- moving the plate forward as well as installing it almost under the engine
- placing the plate on a frame as well as installing it between the lamps
- possible to install the plate in original plasctic bumper
Fits to Dragon Winch winches:
DWM 12000, DWM 13000, DWH 9000, DWH 12000, DWH 15000.
Ask for "DWX" plate for wider winches:
Escape EVO IP68, EWX-Q, EWX-QF, EWB.
Doesn't fit to winches with bigger gear such as:
KingOne TDS-9.5H, TDS-12.0H and Escape DualSpeed.
After installing the front winch, replace the front springs with appropriate "for the winch" or add adjustment spacers above the springs.
Parts preceisly made of laser cut elements.
Certified, high quality steel.
Galvanized metal parts.
Weight (without towing eyes/ with towing eyes): 9,7kg/11,5kg.
No road approval.
10 years warranty.

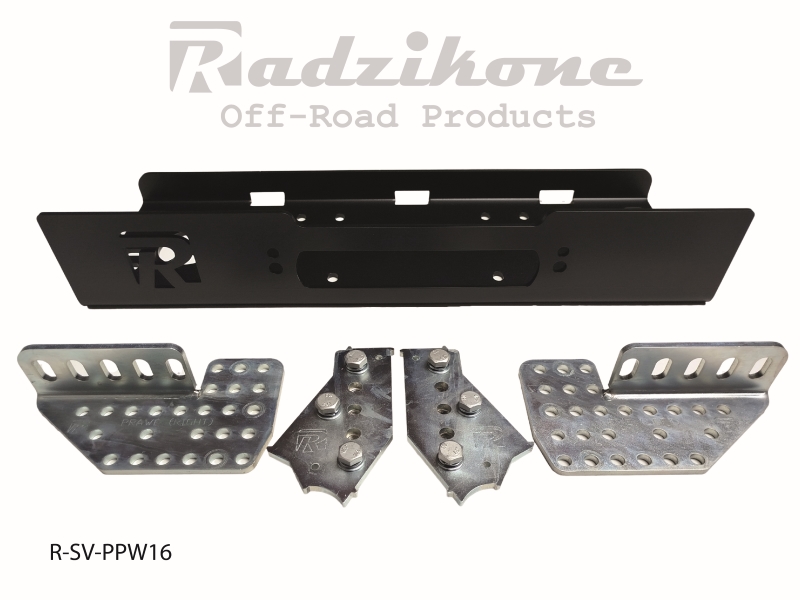

- plate
- two plate mounts
- two brackets with threads, to weld
- mounting bolts
- optional: two towing eyes
Item name | Use in | Price |
---|---|---|
Winch mounting plate Item code: R-SV-PPW16 | Suzuki Vitara I: 3d 1.6 8v 88-98 3d 1.6 16v 88-98 | 650 PLNAdd to Cart |
Winch mounting plate + Towing eyes Item code: R-SV-PPW16+2xR-SVGV-UHK | Suzuki Vitara I: 3d 1.6 8v 88-98 3d 1.6 16v 88-98 | 820 PLNAdd to Cart |
The kit is a perfect set to create a steel bumper yourself.
All you need to do is sides and you have durabily installed bumper,
with towing eyes and possibilty to use Hi-Lift.
Photo & video instruction
Suzuki Vitara I 1.6 3D (1988-1995) Japanese version:
