Satellite-Gear Carrier / Diff Case Types


Front differential types:

Car Strength / Durability Spider Gears / Satellites Spline Count Ring Gear
Vitara 1.6 up to 1996 (made in Japan) 12/100 2 22 10 bolts
Vitara 2.0 TD RF 1996–1998 (steel axle housing) 3/100 2 26 10 bolts
Vitara 1995–1998: 2.0 16v, 2.0 V6, X90, and Santana 1.6 16v, 1.9 TD, 2.0 HDi 12/100 2 26 10 bolts
Grand Vitara I / XL7 (all models 1998–2005) 11/100 2 26 10 bolts
Samurai 1.3 15/100 2 22 10 bolts
Samurai 1.3 / SJ413 – some “open” ring gears with 26 splines from front and rear Vitara axles fit 99/100 4 22 10 bolts

Rear differential types:

Car Strength / Durability Spider Gears / Satellites Spline Count Ring Gear
Samurai 1.3, Jimny 1998-2018 – can be adapted for Vitara I / Grand Vitara I front diff 99/100 4 26 10 bolts
Vitara 1.6 / 2.0 V6 / 2.0 16v / 1.9 TD / 2.0 TD RF 99/100 4 26 10 bolts
Vitara 1.6 / 2.0 V6 / 2.0 16v / 1.9 TD / 2.0 TD RF 99/100 4 26 12 bolts
Grand Vitara I 1998-2005: 1.6 16v, 2.0 16v, 2.5 V6, 2.0 TD RF – does not fit Vitara 99/100 4 26 12 bolts
Grand Vitara I 1998-2005: 2.0 HDi, XL7 2.0 HDi, XL7 2.7 V6 – does not fit Vitara 99/100 4 29 n/a

Vitara & GVI - self-made 4-spider gear carrier (custom differential carrier)




Guide

Radzikone Guides

How to measure a shock absorber
Zdradzamy przeróbki i patenty w aucie do rajdów

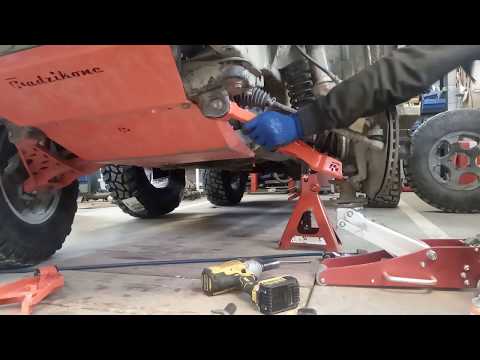

Quick front spring replacement with Radzikone A-arms
Suzuki Vitara I mods

Suzuki Vitara I
3x Grand Vitara - 3d, 5d, XL7 - which one to choose? What engine? What tires?
Radzikone recovery tracks
Front knuckles

Suzuki Vitara I / Grand Vitara I
Tie rods

Suzuki Grand Vitara I
Wheel alignment setting

Suzuki Vitara I / Grand Vitara I
Tie rods ends and tie rods

Suzuki Vitara I
Front steel differential

Suzuki Vitara I / Grand Vitara I
Axle ratios

Suzuki Vitara I / Grand Vitara I
Satellite-Gear Carrier / Diff Case Types
Vitara / Grand Vitara I / Samurai
Vitara & GVI - self-made 4-spider gear carrier
Front driveshafts

Suzuki Vitara I
How and how much cut the arches to fit too big tires?
Budget overland setup

Other

The body “floats” on the frame
Lift 4" PLUS, wzmacniane półosie itp. w Vitarze 2.0 Adama
Wyprawowa XL7 z Liftem 3" okiem widza w Terenwizji
Dawid z firmy Deler wybiera i montuje Lift do Grand Vitary I
"Terenwizja" guide

Suzuki Vitara I

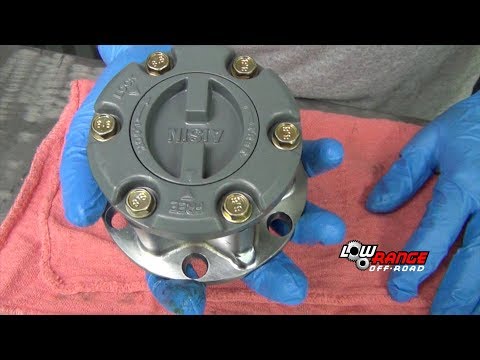

Front locking hub rebuild
